WIDER CAT 92

A 28-metre catamaran with limitless space and comfort. A remarkable combination of hybrid technology and solar energy.

ACCOMODATION:

MAX SPEED:

BEAM:

28.04 m

LENGTH (L.O.A):

15 kn

12.00 m

8 guests + 4

The Solar Flare

Let yourself be dazzled by the future. WiderCat 92 breaks down technological boundaries and the barriers between outdoor and indoor spaces, reflecting a design concept where aesthetics, functionality, elegance and innovation coexist.

Future proof design

WiderCat 92 has no limits. It breaks down technological boundaries and the barriers between outdoor and indoor spaces, reflecting a design concept where aesthetics, functionality, elegance and innovation coexist.

FEATURES

  • WIDERCAT 92 incorporates Wider’s serial hybrid system which, on a smaller scale and just as efficiently, builds on the shipyard’s extensive technical know-how in the Superyacht division.

    Only Permanent Magnet technology electric motors are connected to the thrusters, each providing 583kW maximum power, while energy is produced by two 390kW variable speed generators each one with twin FPT combustion engines. Energy is stored in 30 LiFePO4 (Lithium Iron Phosphate) chemistry batteries managed by a state-of-the-art Battery Management System that constantly monitors operating parameters.

    The entire propulsion system ensures a cruising speed of 12 knots, reaching 15 knots thanks to the Electric Boost. In saving cruising mode, the speed is 8 knots with a range of over 1600 nautical miles. And at 6-knot speed, it can reach up to 2,400 nautical miles thanks to the Wider Serial Hybrid System.

    The catamaran also includes ZEM – Zero Emission Mode. Here, Wider technology lets you travel about 27 nautical miles at 6 knots in complete silence or provides 12-hour autonomy on battery power alone, without charge, when sitting at anchor. During bright, sunlit days, the 170 m2 of solar panels installed on WIDERCAT 92 will deliver energy self-sufficiency at anchor. That’s because any unused energy is stored in the batteries and used during the night.

    + ZEM – Zero emission mode available

    + State-of-the-art Battery Management System

    + Low noise and vibrations

    + Best power/consuption rate

    + 170 sqm of solar panels

  • The standard below deck layout offers two platforms opening directly onto the 67 sqm beach club with direct access from the VIP cabins, a testament to Wider’s indisputable know-how in terms of versatility and sea accessibility for every guest.

    + Drop-down side platforms open out at water level

    + 67 sqm Beach Club

  • The standard below deck layout provides two ultra-generous VIP cabins that uniquely offer two platforms opening directly onto the beach club. In addition, there is an en-suite double Guest cabin.

    The lower deck also provides a generous and usable crew area at the bow. Naturally, the shipyard gives owners the option of a 4-cabin layout lower-deck. The main deck covers an area of more than 100 m2 and nearly half of it is the master stateroom alone, with a breadth comparable to a wide body.

    Large windows, full contact with the sea, versatility and privacy are just a few of the main features. The aft main deck offers a stunning 360-degree view thanks to the uninterrupted windows and flush doors surrounding the guests.

    The upper deck includes another forward cockpit that the owner is free to customize by incorporating a dinette/lounge and a Jacuzzi. The helm is also housed in the upper deck and, unlike other boats of equal length and category.

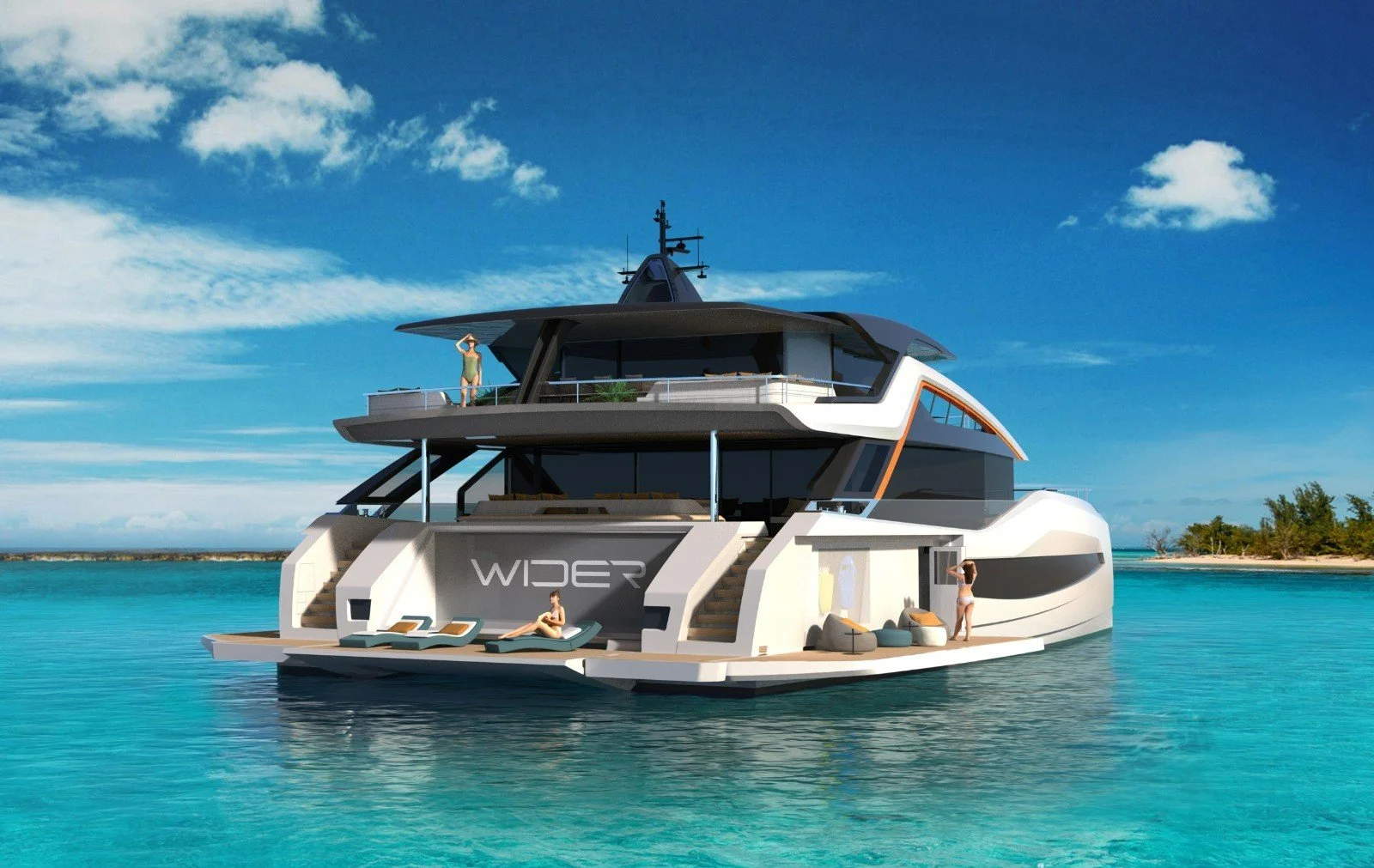

  • WIDERCAT 92 has a 67 m2 beach club that can be accessed directly from the VIP cabins, space for water toys in the bulwarks, and an 18 m2 garage that opens with an electro-hydraulic system. The garage is closed at the stern, for safe cruising even in rough sea conditions. It easily accommodates a 5.5-metre tender or a 4.5-metre tender and a Jet Ski.

    + 5.5 m tender (or 4.5 m tender + 1 Jet Ski)

    + Stowage space for water toys

Equipped with Dynamic Positioning, WiderCat 92 uses an electronic satellite-controlled system to automatically maintain its position and heading.
The WiderCat 92 electronic anchor system heralds a new era of environmental consciousness, sitting at anchor in Zero Emission Mode and preserving marine ecosystems.​

Anchoring without an anchor

Tech Specs

    • BUILDER: Wider Srl

    • LENGHT (L.O.A.): 28,04 m (92′ 0″) approx

    • BEAM: 12,00 m (39′ 4″) approx

    • DRAFT (FULL DISPLACEMENT): 1,50 m (4′ 11″) approx

    • HULL AND SUPERSTRUCTURE: GRP

    • DISPLACEMENT FULLY LOAD: 90 tons approx

    • DESIGNER: Luca Dini Design, Centro Stile Wider

    • INTERIOR DESIGNER: Luca Dini Design, Centro Stile Wider

    • NAVAL ARCHITECT: Wider Engineering

    • CLASSIFICATION: RINA CE

    • LOCATION: Ancona (Italy)

    • FUEL TANK CAPACITY:10.000 L – 2.640 US gal

    • WATER TANK CAPACITY:2.000 L – 528 US gal

  • An eShaft with twin screw props with Wider Serial Hybrid system allows, in trial condition, a range up to 3.000 nm at 8 knots

    • MAXIMUM SPEED: 15 kn

    • CRUISING SPEED: 13 kn / RANGE: 1.000 nm approx.

    • ECOLOGICAL SPEED: 8 kn / RANGE: 3.000 nm approx.

    • AT ANCHOR: RANGE:12 hours approx.

    • BATTERY BANK: 360 kW available

    • TYPE OF PROPULSION: eShaft with twin screw props

    • PROPULSION MOTORS: 2 x 420 kW Permanent Magnet Motor

    • GEN SET: 2 x 300 kW Variable Speed Nanni Diesel

    • for 8 Guests + 4 Crew Members
